Bindings

This page describes how the gamepad controls SousaFX. All of the parameters on this page can be viewed in the Active Bindings window, but they may not yet be shown in their respective FX parameters windows.

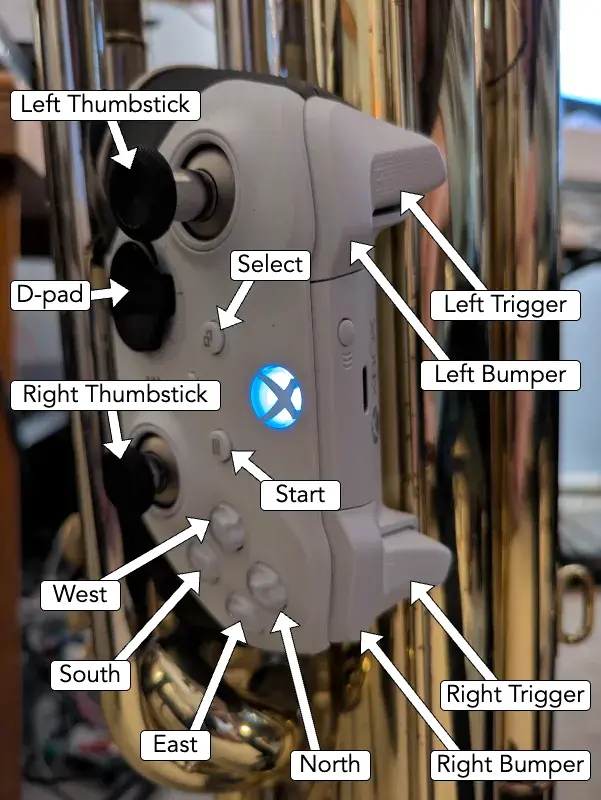

gamepad

Start, Select, N E S W

Start and Select are used for modifying the functions of the North, East, South, and West buttons, as well as modifying the functions of the thumbsticks, and the d-pad.

  • Without start or select pressed:

    Input Function
    North Tap tempo. Last tap sets beat 1. Tap once to set beat 1 without changing tempo. Metronome auto-mutes while tapping.
    East Drum looper start / stop / clear.
    South Momentarily enable main stutter.
    To perma-enable: Hold start or select before releasing South.
    West Bassline looper start / stop / clear.
    Left Thumbstick Button < See link
    Right Thumbstick Button < See link

select

  • With select pressed:

    Input Function
    North Toggle metronome.
    East Randomize drum samples.
    South Toggle bumper drumming.
    West Releases any holds on all delay feedback amounts.
    Right Thumbstick While using the right thumbstick to modulate any delay feedback amount, pressing Select will place a hold on said feedback amount.
    Left Thumbstick Button < See link

start

  • With start pressed:

    Input Function
    North Momentarily enable pitchshift power chord.
    To perma-enable: Release start before releasing North.
    East Momentarily enable kick-ducker.
    To perma-enable: Release start before releasing East.
    South Momentarily enable scatter fx for bassline looper stutter.
    To perma-enable: Release start before releasing South.
    West Momentarily enable MIDI CC 50 via the MIDI port named "from Max 1", which is intended to be mapped to a talkback mic.
    Left Thumbstick While holding Start, the left thumbstick sets the lowpass filter modulation shape: The horizontal axis crossfades from falling saw, to triangle, to rising saw. The down axis squishes the triangle, and the up axis crossfades from triangle to square.
    Left Thumbstick Button < See link

  • With start and select pressed:

    Input Function
    North Set time signature numerator via number of clicks (3 - 7).
    Hold to set to 4.
    East Set drum looper length in bars via number of clicks (4 - 16).
    Hold to set to 8.
    South Momentarily enable octaver. To perma-enable: Release start and/or select before releasing South.
    West Set bassline looper length in bars via number of clicks (4 - 16).
    Hold to set to 16.

  • With start and/or select pressed:

    Input Function
    D-pad Toggle 8th note auto-swing

Shoulder Buttons

While bumper drumming is enabled, pressing the shoulder buttons triggers drum samples, and holding the shoulder buttons retriggers drum samples at the rate set by the d-pad.

Button Samples
Left Trigger Clap
Left Bumper Snare
Right Trigger Tom
Right Bumper Kick

While bumper drumming is disabled (which happens automatically while the tuba is playing, or the drum looper is looping) the shoulder buttons operate as follows:

Button Samples
Left Trigger ● Changes the subivisions set by the d-pad and left bumper.
● Enables the lowpass filter modulation acceleration, and disables all stutter acceleration, until the right thumbstick is within its deadzone.
Left Bumper Without the Left Trigger pressed:
● Disables the stutter for the drum looper and bassline looper, until either the left thumbstick is within its deadzone, or the Left Bumper is pressed again.
● Disables all delay sends until the right thumbstick is within its deadzone.
● Enables the solo stutter effect until the right thumbstick is within its deadzone.

With the Left Trigger pressed:
● Sets subdivision to half note.
Right Trigger While holding Start and Select, press RT three times to mute all audio inputs and outputs. Press RT once to unmute.
Right Bumper Momentarily enables the manual wah.

D-pad

The left bumper, and the d-pad, are used for setting the subdivision of the auto-wah, delays, and stutters.

The left trigger is used for changing the function of the d-pad and the left bumper.

  • Without the left trigger pressed:

    d-pad Function
    left bumper Momentarily enable manual wah
    d-pad up quarter
    up right dotted quarter
    right 8th triplet
    down right 16th triplet
    down 16th
    down left 32nd
    left 8th
    up left dotted eighth

  • With the left trigger pressed:

    d-pad Function
    left bumper half
    d-pad up quarter triplet
    right 16th triplet
    down quarter quintuplet
    left 8th quintuplet
    up left dotted 16th

If a subdivision is triggered twice in a row, then while the button is held down the second time, the stutters are reversed, and the wah shifts to the offbeat.

If the d-pad is pressed quickly, the delays will not pitch shift while the delay time changes, but if the d-pad is held briefly, then released, the delays will pitch shift while the delay time changes. This shift takes longer to go upwards than downwards.

The delay's subdivisions are half as fast as the main subdivision.

While the tuba is playing, the d-pad will not modify the bassline delay's subdivision.

Left Thumbstick

Vertical

left vertical

  • Crossfade position.

    Up crossfades towards the overdriven modulated lowpass filter sound.

    Down crossfades towards the detuned dry sound.

    Press L3 while holding Select to toggle this binding between Vertical and Magnitude.

  • LFO floor envelope sensitivity:

    Up increases the sensitivity.

    Down decreases the sensitivity.

  • Bassline looper filtersweep:

    Up sweeps a highpass filter upwards.

    Center bypasses these filters.

    Down sweeps a lowpass filter downwards.

  • LFO shape:

    Can only be set while Start is pressed. The set value is held after Start is released.

    Down to squish the triangle.

    Center for triangle.

    Up to morph to square.

  • Solo Tremolo Autopan Depth:

    Allowed after the left bumper is pressed.

    Denied after the left bumper is released, & the right thumbstick is within its deadzone.

Up

left up

  • Drum stutter enable:

    Allowed while the drum looper is looping, & the tuba isn't playing a bassline.

    Momentarily disallowed while Right Bumper is held.

  • Drum stutter autopan amount:

    Allowed while drum stutter enabled.

Horizontal

left horizontal

  • Drum filtersweep:

    Allowed after the tuba stops playing, & the left thumbstick is within its deadzone.

    Denied after the tuba starts playing, & the left thumbstick is within its deadzone.

    Left sweeps a highpass filter upwards.

    Center bypasses these filters.

    Right sweeps a lowpass filter downwards.

  • LFO shape:

    Can only be set while Start is pressed. The set value is held after Start is released.

    Left for rising saw.

    Center for triangle.

    Right for falling saw.

  • LFO ceiling envelope sensitivity:

    Left increases the sensitivity.

    Right decreases the sensitivity.

  • Solo Tremolo Duty Cycle

    This is the ratio of the time the square wave is active, to the total time of one complete cycle.

    Allowed after the left bumper is pressed.

    Denied after the left bumper is released, & the right thumbstick is within its deadzone.

Left

left left

  • Bassline looper stutter enable:

    Allowed after the bassline looper starts looping, & the left thumbstick is within its deadzone.

    Denied after the bassline looper stops looping, & the left thumbstick is within its deadzone.

    Momentarily disallowed while the right bumper is held down.

  • Bassline looper stutter autopan amount.

    Allowed while bassline looper enabled.

Magnitude

  • Crossfade position.

    The center crossfades towards the detuned dry sound.

    The edge crossfades towards the overdriven modulated lowpass filter sound.

    Press L3 while holding Select to toggle this binding between Vertical and Magnitude.

L3 Button

l3

  • Push L3 once, twice, or thrice in succession to set the crossfade's mode. Hold for more than 600 ms, then release, to select the first option.

    1. Once to enable the "transient helper", which increases the crossfade whenever the noisegate is gating.

    2. Twice to disable the "transient helper".

    3. Thrice to disable the crossfade entirely.

  • While holding Start, push L3 to toggle weither the tuba's loudness modulates the LPF LFO's ceiling and floor. Hold for more than 600 ms, then release, to enable modulation.

  • While holding Select, push L3 to toggle the Crossfade binding between "vertical" and "magnitude". Hold for more than 600 ms, then release, to set it to vertical.

Right Thumbstick

Up

right up

  • Bassline delay feedback amount, & solo delay feedback amount.

  • Solo stutter autopan amount.

  • Drum delay feedback amount:

    Allowed after the tuba stops playing, & the right thumbstick is within its deadzone.

    Denied after the tuba starts playing, & the right thumbstick is within its deadzone.

  • LPF LFO acceleration:

    Allowed after the left trigger is released, & the right thumbstick is within its deadzone.

    Denied after the left trigger is pressed.

Down

right down

  • Either LPF LFO decceleration, or swing amount, depending on R3.

  • Bassline looper delay feedback amount.

Horizontal

right horizontal

  • Delays' feedback loops' highpass filter frequency adjustment for bassline, bassline looper, tuba solo, and drums.

    Left towards 60 Hz.

    Centered on 400 Hz.

    Right towards 2100 Hz.

  • Stutter Acceleration for bassline, bassline looper, tuba solo, and drums:

    Allowed after the right bumper is released, the respective stutter is enabled, & the right thumbstick is within its deadzone.

    Denied after the right bumper is pressed, or the respective stutter is disabled.

    Left increases the speed.

    Center returns to the original speed and phase.

    Right decreases the speed.

  • Free LFO speed:

    Allowed when R3 pressed thrice.

    Left increases the speed.

    Right decreases the speed.

  • Solo Tremolo Depth:

    Allowed after the left bumper is pressed.

    Denied after the left bumper is released, & the right thumbstick is within its deadzone.

Left

right left

  • Main delay send & solo delay send:

    Denied after the left bumper is pressed.

    Allowed after the left bumper is released, & the right thumbstick is within its deadzone.

  • Drum delay send, and bassline looper delay send:

    Allowed after the tuba stops playing, & the right thumbstick is within its deadzone, & the right bumper is released.

    Disallowed after the tuba starts playing, & the right thumbstick is within its deadzone.

    Also disallowed after the left bumper is pressed.

right right

  • Main reverb send.

  • Bassline looper reverb send, and Drum reverb send:

    Allowed after the tuba stops playing, & the right thumbstick is within its deadzone.

    Denied after the tuba starts playing, & the right thumbstick is within its deadzone.

Vertical

right vertical

  • Solo Tremolo Acceleration:

    Allowed after the left bumper is pressed.

    Denied after the left bumper is released, & the right thumbstick is within its deadzone.

R3 Button

r3

Push R3 once, twice, or thrice in succession to switch the right thumbstick's bindings for the lowpass filter's LFO. Hold for more than 600 ms, then release, to select the first option.

  1. Once for the vertical axis to control the acceleration (up accelerates, down deccelerates).

  2. Twice for the up axis to control the acceleration, and the down axis to control the swing amount.

  3. Thrice for the up axis to control the sync-free crossfade, the horizontal axis to control the free rate (left for faster, right for slower), and the down axis to control the swing amount.
